Burmarc's Cellular Service - Keeping you connected, one bar at a time.

Tailored hardware bundle

Routers, antennae & networking components selected for performance

Unlimited data options

SIM packs for UK, roaming from small volume to unlimited annual data

Full installation service

Experience specialist installers approach each install with best practice mindset

Secure & Scaleable

Enterprise level security available within devices and VPN tunnels

Remote & local reports

Usage & performance analysis available to designated users

Optimised

We can target priorities from offshore range, link resilience, least cost & more

Peplink - leaders in LTE communications

Cellular router hardware portfolio

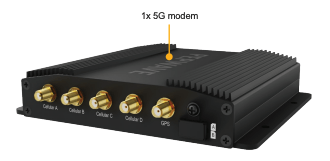

single modem

Single Modem

Best suited to:

  • Private & Recreational Vehicles
  • Vessels <60'

Key benefits:

  • Dual SIM failover
  • 1-30 devices
  • Gigabit WAN & LAN (GE)
  • GPS
  • Remote Management


dual modem

Dual Modem

Best suited to:

  • 60-100' Yachts & Ferry
  • VIP Minibus & Coaches
  • Construction site

Key Benefits:

  • Modem & SIM failovers
  • Bonding options
  • 2-75 devices
  • IP67 & Remote mount options available for specific applications


quad modem

Quad Modem

Best suited to:

  • Superyacht & Cruise
  • Remote Office / Branch
  • Mobile ops / Broadcast

Key Benefits:

  • WAN Bonding & Smoothing
  • upto 250 devices
  • Multiple GE & PoE ports
  • Upto 2.5Gbps throughput
  • IP67 variant available


modular build

Modular Build

Configurable Hardware with Cat-18 1.2Gbps modems or upto 18 Cat-12 600Mbps.

Supports PoE LAN modules and SPF+ modules to build your leased-line-free architecture.

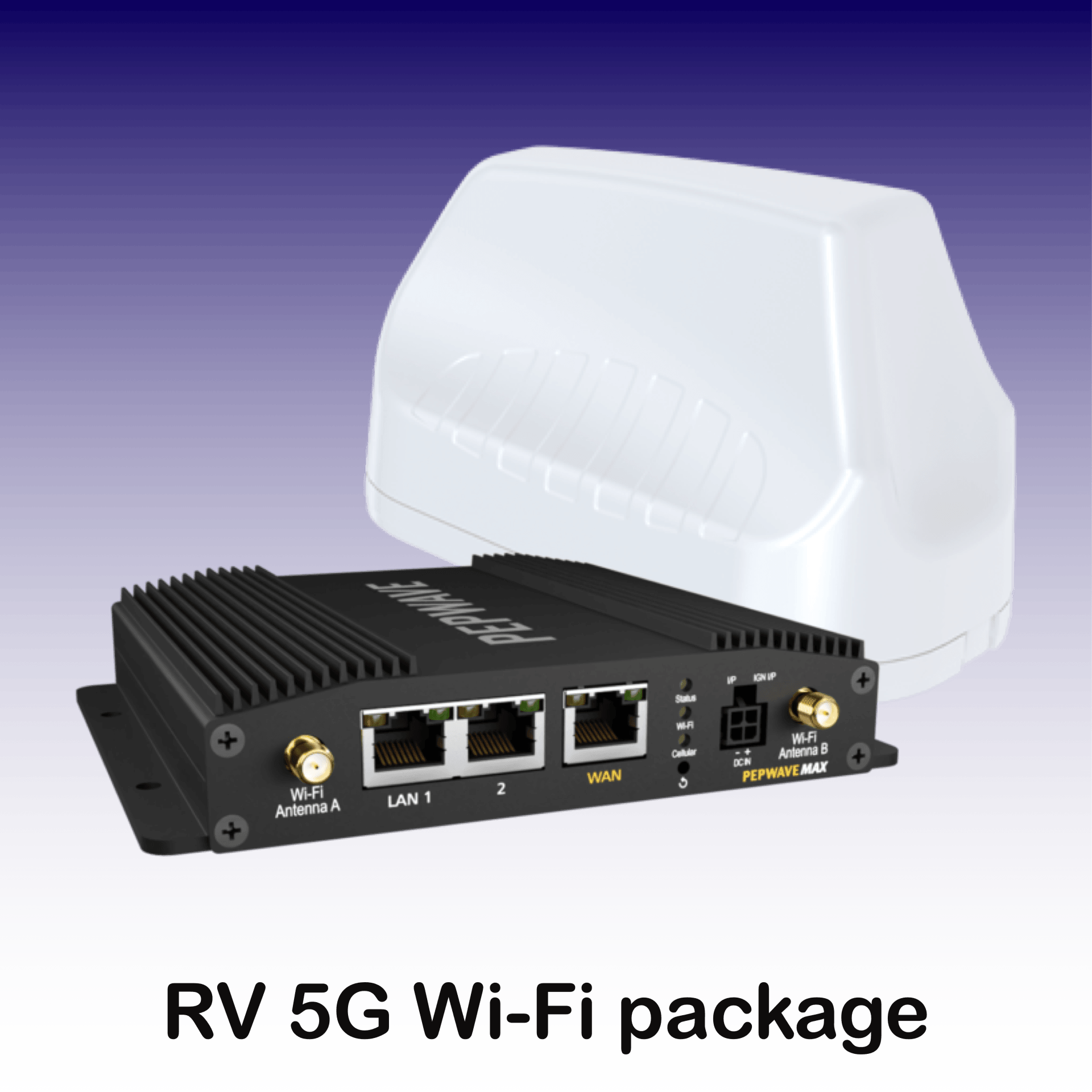

Premium Motorhome

premium motorhome
  • 5G single modem & dual sim failover
  • 5G / 4G / 3G cellular data connection
  • Wi-Fi
  • Wi-Fi WAN (connect to site Wi-Fi)
  • LAN - 2 (or 3) wired network ports
  • WAN - 1 (or 0) wired WAN port
  • 4x4 mimo antenna with Wi-Fi & GPS

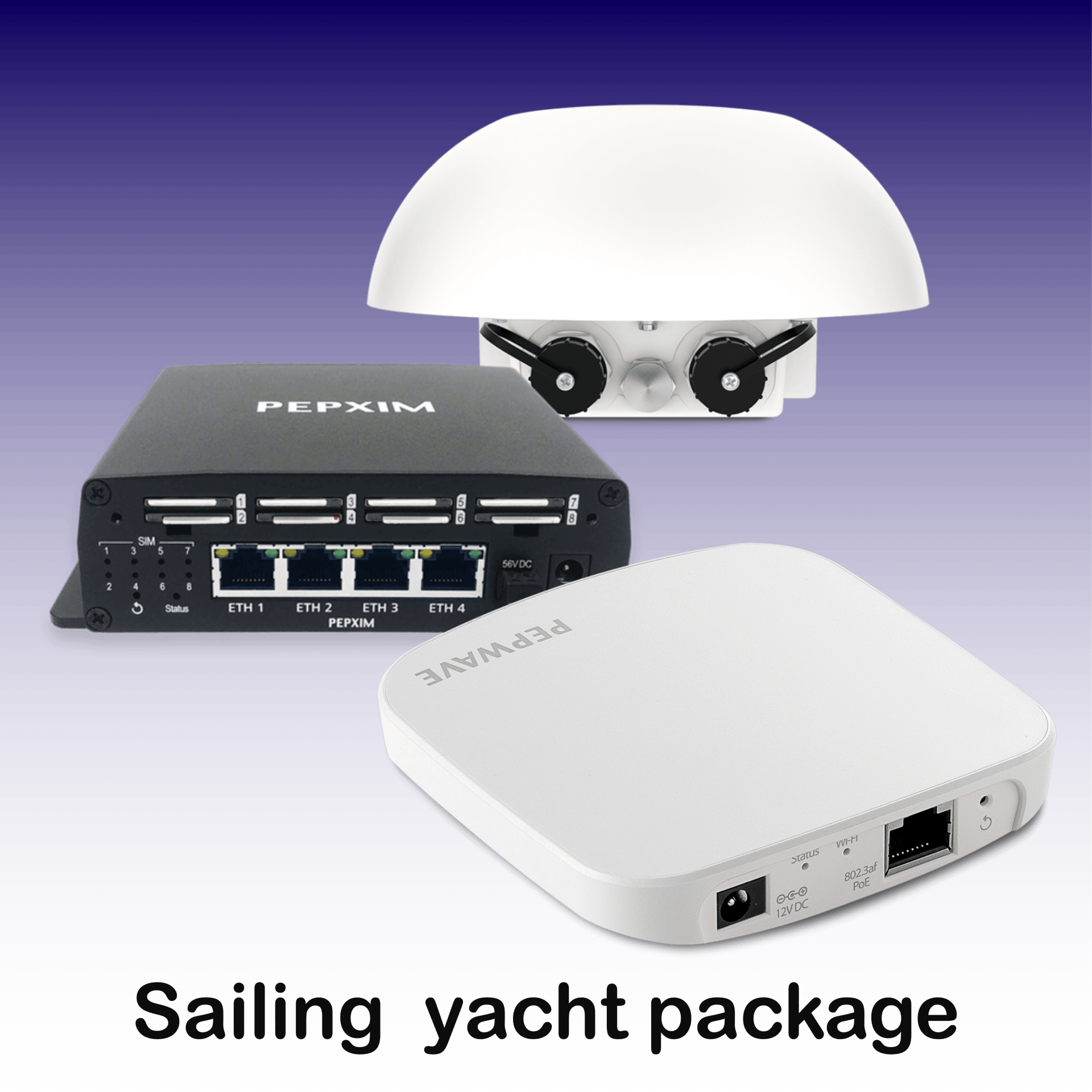

Sailing Yacht

sailing yacht
  • Integrated 5G modem & 4x4 antenna
  • Mast-top antenna for maximum range
  • Sim injector for below-decks sim swap (upto 8 selectable Sims)
  • PoE to power antenna (90m max)
  • 3 addditional network ports for wired devices like Access Points

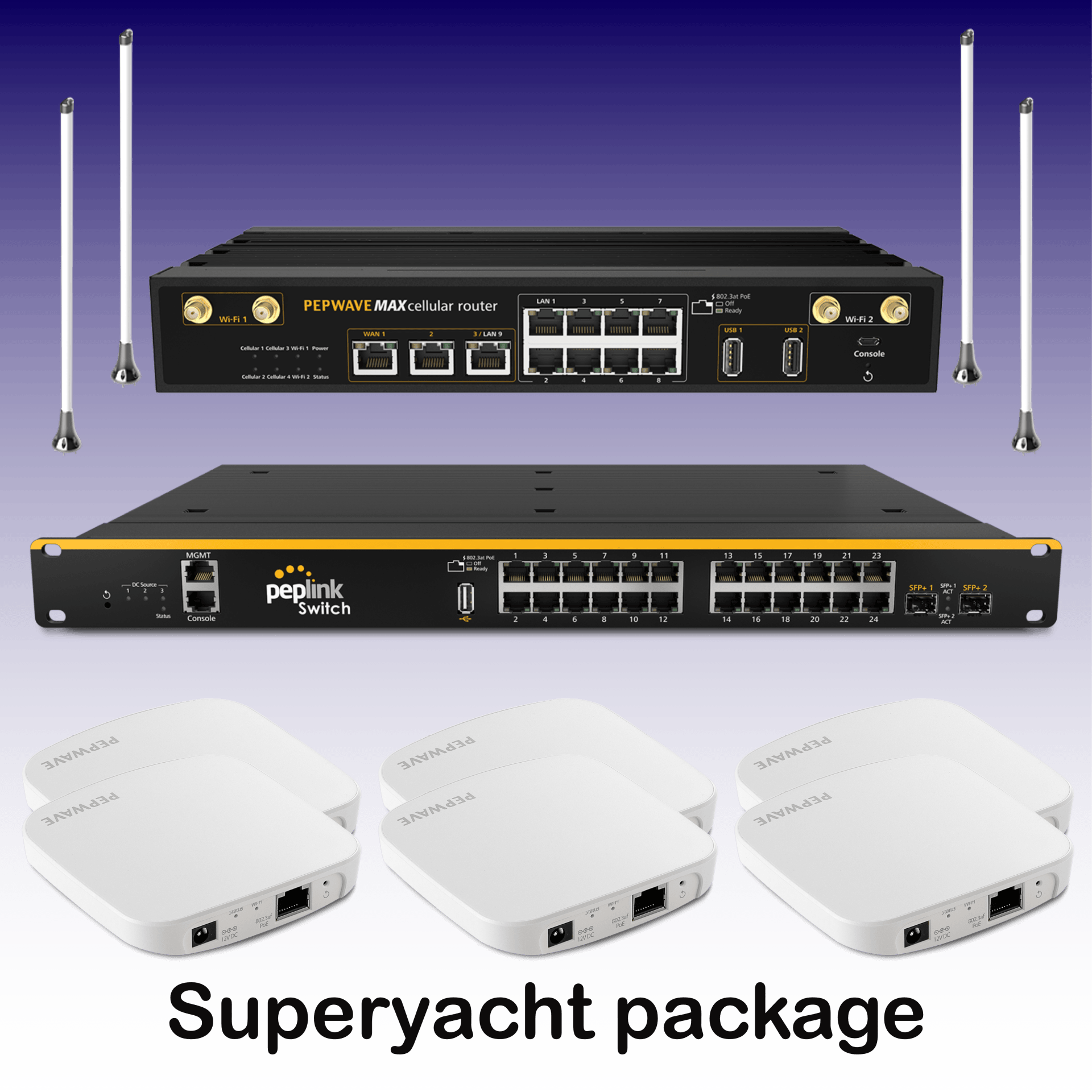

Superyacht

superyacht
  • Quad 5G modems in high-throughput router
  • 4x combi 4x4 mimo high & low gain antenna array
  • Rugged network switch
  • Multiple Access Points
  • Multiple SSIDs e.g. Owner/Guest/Crew/Ops
  • Multiple WAN options for VSAT & Satcoms failover
  • Also suitable for coastal & global shipping with specific configuration


Cross-channel Ferry

cross-channel ferry
  • Wavehunter multi-directional multi-polarisation antenna array
  • 6x 5G modem for maximum throughput and/or coverage
  • Aggregation router to combine & distribute traffic from clients & routers
  • Rugged network switch(es) for fully managed wired network
  • Access Points for wireless access around the ship as required
  • Portal guest login and other value-add functionality supported

Modem Specifications

Single Modem

Pepwave BR1 Pro 5G

Our favourite single modem dual-sim router for land-mobile & inland & inshore waterway small craft. Robustly designed for the mobile environment.


Superfast CAT-20 modem with high throughput gigabit networking & firewall.


Integral WiFi 6 for the latest highspeed performance as well as remote access support, SpeedFusion services and a raft of other features.


Suitable applications include:


LAND:


 Campervan, motorhome, caravan, horsebox, RV, coach, overland / expedition vehicle / community service vehicles


Marine (especially with maritime antennae):


Inland waterway, inshore craft; sailing & motor yachts, workboats, fishing trawler, harbour patrol, windfarm support etc.

Pepwave HD1 5G Dome

Single cellular modem dual-sim router IP protected for remote installation on top of masts for maximum range.


Cellular Router for Mobile Outdoor Deployments


The HD1 Dome provides optimal router/antenna compination within an IP67 enclosure that has a minimal profile on the rooftop while providing minimum cable loss, therefore, maximum signal. Placement can be far more flexible than a remote antenna due to lack of cable losses associated with long RF cable runs - HD1 can be located 90m from network connected & powered over Ethenet cable.

Product Optimal Application GPS WAN Failover Load Balancing Optimal No of Devices Throughput GE WAN GE LAN Speedfusion Bonding WAN Smoothing Hot Failover Pepwave AP Control Notes
BR1 Pro 5G Vehicle & small vessel Y SIM Failover Y (External WAN) 1 to 50 1Gbps 1 1 Y (External WAN) Y (External WAN) Y (External WAN) Y Dual SIM for improved reception
HD1 Dome Marine & Site office Y SIM Failover N 1 to 30 400mbps 0 1 N N N Y IP67 for remote location

Modem Specifications

Dual Modem

Pepwave Max Transit Pro

Dual cellular modem router with features & certification targeted at transport  applications.


Built for Transportation Deployments


With a compact form factor, simultaneous dual-band  Wi-Fi 6, and two embedded LTE modems, the MAX Transit DUO is ready to deliver fast, reliable connectivity in transportation and public safety deployments.

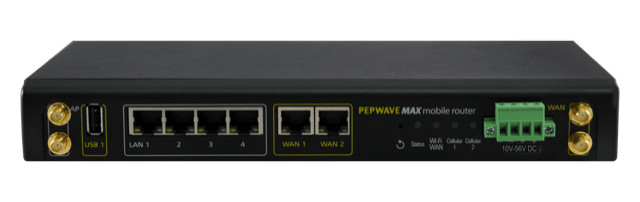

Pepwave MAX HD2

Dual cellular modem router building on the capabilities of the BR1 MK2.


Dual 4G LTE Mobile Router


The MAX HD2 gives you blazing fast connectivity on the road with dual embedded cellular modems and SpeedFusion, plus a built-in 4-port GE switch to reduce clutter in your mobile deployments.

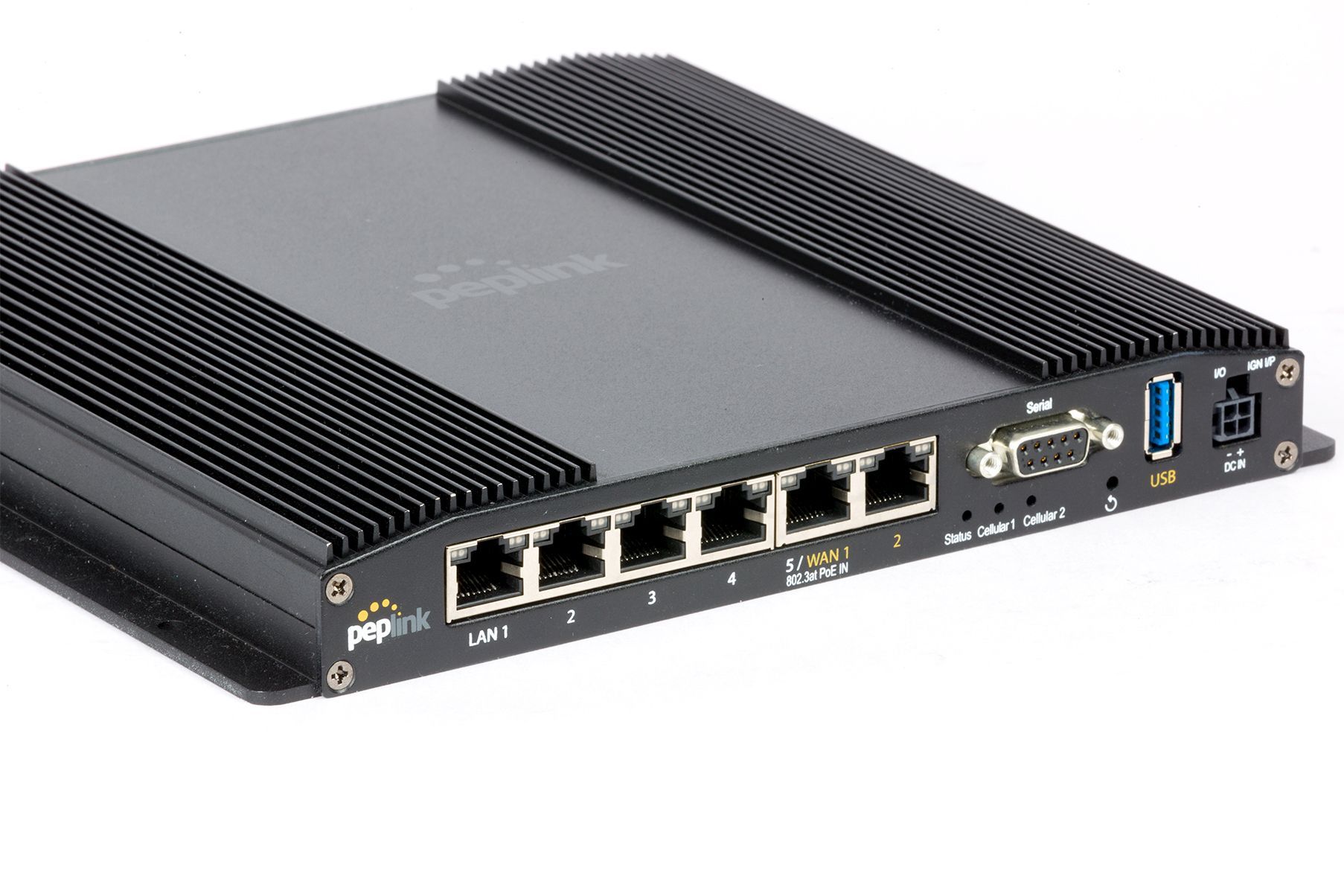

Peplink BR2 Pro

With so many WAN options, the BR2 Pro can seamlessly failover to guarantee your flow of data, even during the most critical circumstances. The Gigabit routing speed and serial port for OOBM allow versatility for any SD-WAN deployment.

Pepwave HD2 Dome

Dual cellular modem router IP protected for remote installation on top of masts for maximum range.


Dual Cellular Router for Mobile Outdoor Deployments


The HD2 Dome provides dual-cellular Bandwidth Bonding in an IP67 enclosure that has a minimal profile on the rooftop while providing maximum signal. With redundant SIM, the HD2 Dome supports two cellular radios and four SIM cards. Combine the HD2 Dome with the SIM Injector, and the number of cards increases to twelve.

Product Optimal Application GPS WAN Failover Load Balancing Optimal No of Devices Throughput GE WAN GE LAN Speedfusion Bonding WAN Smoothing Hot Failover Pepwave AP Control Notes
Transit Duo VIP Minibus & coach & medium vessel Y Y Y 2 to 75 400Mbps 1 1 Y Y Y Y MiMo dual channel WiFi
HD2 Remote office & medium vessel Y Y Y 2 to 75 400Mbps 2 4 Y Y Y Y Additional wired LAN ports
Peplink BR2 Pro Construction site & marine Y Y Y 2 to 75 400Mbps 1 1 Y Y Y Y HD2 in Waterproof Housing with integrated antennae
HD2 Dome Sailing Yacht / marine rigs Y Y Y 2 to 75 400Mbps 1 1 Y Y Y Y Optimal configuration utilises the remote SIM injector

Modem Specifications

Quad Modem

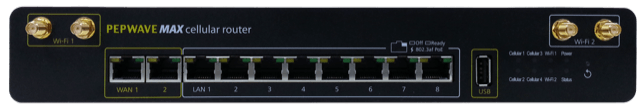

Pepwave Max HD4

Quad cellular modem router with dual sim per modem for exceptional flexibility.

Quad 4G LTE Mobile Router.

The MAX HD4 delivers outstanding performance from all your connections with the help of SpeedFusion bandwidth bonding and intelligent load balancing.

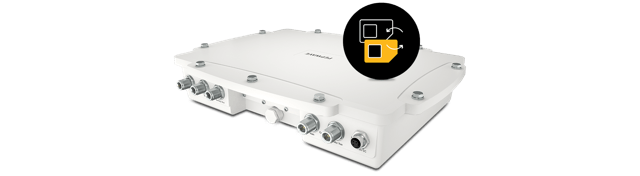

Pepwave Max HD4 IP67

HD4 Router with integral antennae in weatherproof enclosure.

Quad 4G/3G Mobile Outdoor Router.

The HD4 IP67 outdoor router offers quad embedded cellular modems and PoE support, all encased in a shock and vibration certified, waterproof enclosure that’s more than a match for almost any environment.

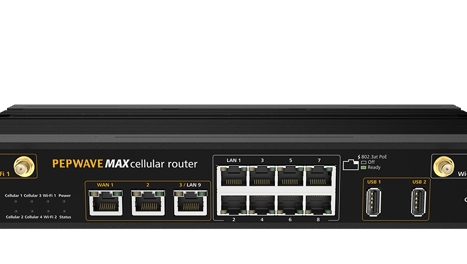

Pepwave HD4 MBX

High throughput Quad cellular modem router featuring Cat-18 (1.2Gbps download capable) modems, now also available with Cat-20 5G modems both as new orders and as an upgrade kit for existing customers of HD4 MBX.

Quad Cellular Gigabit LTE Mobile Powerhouse.

The HD4 MBX is capable of combining the bandwidth of up to 4 cellular links into an unbreakable, high-speed SD-WAN connection. The HD4 MBX supports up to 8 SIM cards, with room for another 8 with the optional SIM Injector. With up to 16 cellular providers to connect to, spotty coverage will simply not be a problem.

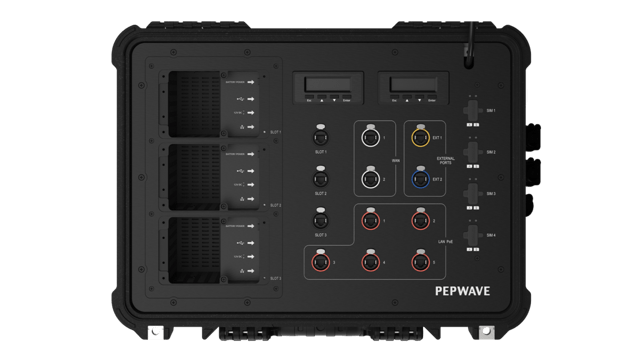

Pepwave PDX

HD4 Quad modem router as a turnkey flyaway connectivity case.

Portable, Rapidly Deployable SD-WAN.

The PDX has a quad-cellular router, antennas, and batteries all seamlessly integrated into a rugged enclosure. If you want more cellular connections and frequencies, the PDX can also integrate SpeedFusion Engines.

Product Optimal Application GPS WAN Failover Load Balancing Optimal No of Devices Throughput GE WAN GE LAN Speedfusion Bonding WAN Smoothing Hot Failover Pepwave AP Control Notes
HD4 Broadcasting / First responders / public safety Y Y Y <250 400Mbps 2 (to 5) 8 (to 5) Y Y Y Y
HD4 IP67 Remote worksite / event with high bandwidth demands Y Y Y <250 400Mbps 1 1 Y Y Y Y
HD4 MBX Superyacht / Cruise / Ferry Y Y Y 25-250 2.5Gbps 3 8 Y Y Y Y
PDX Anywhere for rapid highbandwidth deployment Y Y Y 25-250 2.5Gbps 2 7 Y Y Y Y Flyaway kit: Intergated Batteries & Antennae

Modem Specifications

Custom Built

Pepwave EPX

Ultra high-performance chassis with modules of cellular modems, PoE, SPF+ modules to build the configuration that meets your specific needs.

Extreme Performance SD-WAN Platform

Introducing the industry’s highest performing SD-WAN platform. The EPX is a rapidly deployable, powerful, and versatile SD-WAN router that connects a wide range of WAN options from LTE-A, satellite modems, to fixed line networks. At a 19″ 2U rack mountable form factor, it can combine up to 18x LTE-A connections for absolute connection reliability.

FAQs

Here are answers to some common questions.

  • Why are your single modem cellular solutions better than a mobile phone?

    Mobile Phones offer us great independance and powerful computing in our pocket, but in remote locations and indoors signal often leads to reduced connection & signal performance.


    An installed solution will often have outdoor mounted high-gain antennae.

  • What is the advantage of a dual SIM modem?

    Have 2 SIMs available for use by a modem can provide a number of benefits:


    - In home country you may choose to have SIMs from two different network providers where one may have different celluar coverage in particular locations compared to the other allowing the modem to make connections where it may not on the initial SIM.


    - If regularly travelling from one region to another you could have local SIMs for those regions so as to avoid roaming charges.


    - For budget control a SIM with a certain volume of data could be a primary SIM with fallback to the backup when that SIM is exhausted.

  • How does Dual SIM differ from Dual Modem?

    With the Dual Sim solutions, the modem can only use one SIM at a time so the connection speed will be limited by the available bandwidth of that service, the modem & router throughput - the lowest of which will be the limit overall.


    Also when switching from one SIM to the other there will be a loss of connection while the modem negotiates with the new provider.


    All our dual & quad modems have dual sim slots for each modem.


    Each modem in a multi-modem system will operate independently so could potentially provide double the bandwidth of a single modem to the connected users


    Ideally we would would configure the modems to have different threholds / sim preferences and other means to prevent both modems switching cells at the same time in order that the router maintains a connection on one modem while the other is switching.


    More than one modem also means it is possible to bond these connections via "Speedfusion" to create a link where even a user on a critical video call would not have to reconnect if one of the modems switched - see SpeedFusion service

  • How far offshore can I get a good connection using your cellular products?

    Range will depend on a number of parameters but we have seen repeated cases where with a high quality antenna in a good location, and other best practice installation methods followed where speeds in excess of 20Mbps were acheived (single modem) more than 40km from shore (midway from Isle of Wight to Cherbourg as an example).


    Of course if you add satellite connection as a failover then trans-ocean is easily achieved.

  • How do I know how much data I'm using?

    The routers include a great deal of management capability within the user interface and these functions like usage and many other parameters may be accessed locally or via a remote service known as InControl2 (IC2) - these can also provide automated reporting via email

  • Can I get unlimited data plans?

    Yes our cellular routers are unlocked to work with any SIM provider (certain countries may require specific versions of the modem to support particular frequency bands)


    We are happy to provide quotation for unlimited, pooled SIM and managed SIM services as well as support your preferred SIM provider.

  • Working from home benefits?

    The features of our products and the recent upsurge in working from home mean that "home" could be a yacht, motorhome, mobile home or any manner of remote locations where staying connected is now not only possible but essential for modern working practices

Get in Touch

Got questions? Dive into the sea of knowledge with Burmarc - we're here to guide your voyage of discovery!
