Broadband Satcomms

STARLINK - LEO (Low Earth Orbit)

VSAT (Very Small Aperture Terminal) - Geostationary

STARLINK - INSTALLER

Burmarc is UK's first official Starlink Installer focused on Marine & Maritime applications

Starlink High Performance Maritime

Starlink is a massive disruptor in the satcom industry providing fast internet speeds including low latency and near-worldwide coverage. Low cost hardware and low price per GB (gigabyte) make this a superb additional link for crew welfare and high demand applications. Complimentary technology for cellular when near shore, or VSAT offshre and blue water use.  We have also combined multiple Starlink antennas for additional bandwidth, or shadow mitigation, or even different subscription profile handover.

Using satellites that pass overhead there is significantly lower chance of prolonged periods of outage from blockage on a particular passage heading.

Details at starlink.com

KVH TracNet


For the ultimate combination of speed, reliability and data cost consider adding LEO services to TracNet for the best of both worlds



KVH One - Combined VSAT, Cellular & Wi-Fi Connectivity solution

Enjoy the fastest, most reliable connectivity at sea, near shore and in port with the KVH ONE™ hybrid network and ground-breaking TracNet™ terminals. Each system includes integrated satellite, cellular, and Wi-Fi technology with intelligent, automatic network switching that will keep you connected to the best communication option at all times, in all sea states, and at any speed. It’s like having three antennas in one! Captains can share proprietary files with the office on shore. Crew members can enjoy entertainment, news, sports, and social media, plus enjoy crystal-clear voice calls with family. Don’t think about how to connect, just feel confident that captains and crew can connect to whatever they need at any time. Guests will love the excellent connectivity experience onboard your vessel. It's the superior solution for owners and charter captains whose guests deserve the best. Details at kvh.com

Size

From a 37cm H30 to the 1m H90 there is a dome size that is appropriate for most sea-going vessels & platforms

Speed

The larger the dish the faster the maximum speed available over satellite link (other services are the same irrespective of size) so if offshore speed is critical consider the larger H60 or H90.

Cost

There is of course a price difference in the hardware (and potentially installation) for these products.

Which TracNet is right for me?

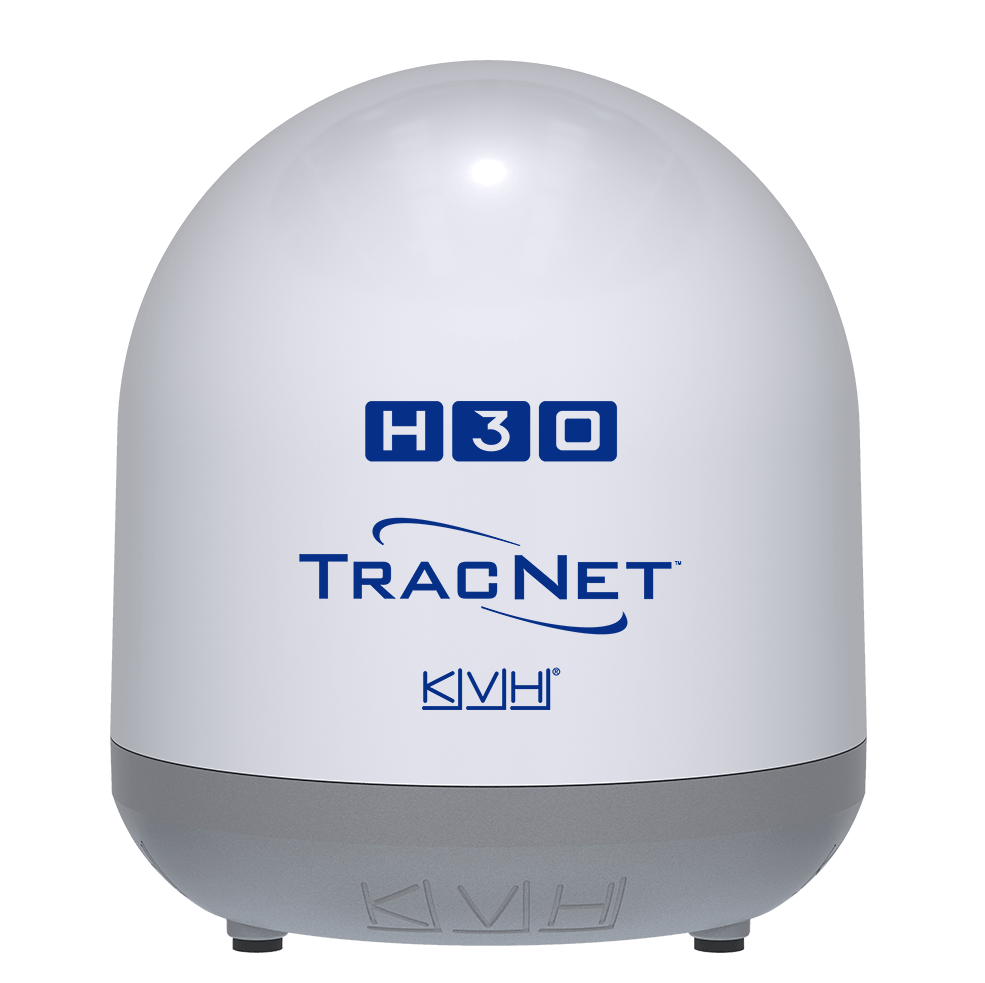

TracNet H30 (Leisure Vessels <60')

Best suited to:

  • Regional workboats
  • Leisure Vessels <60'

Key benefits:

  • Satellite, cellular, and Wi-Fi capabilities in one integrated design
  • Automatically switches to the best connectivity option based on cost, data quality, and more
  • DC Powered ultra-compact BDU or AC powered Control-unit with added function
  • Seemless Global roaming
  • Ku-band coverage

Satellite:

  • upto 6Mbps Download
  • upto 2Mbps Upload
  • Low cost per MB
  • Voip line with local number
  •  Rugged, commercial-grade system, diameter 37 cm (14.6 in), weight 11.2 kg (24.6 lbs)

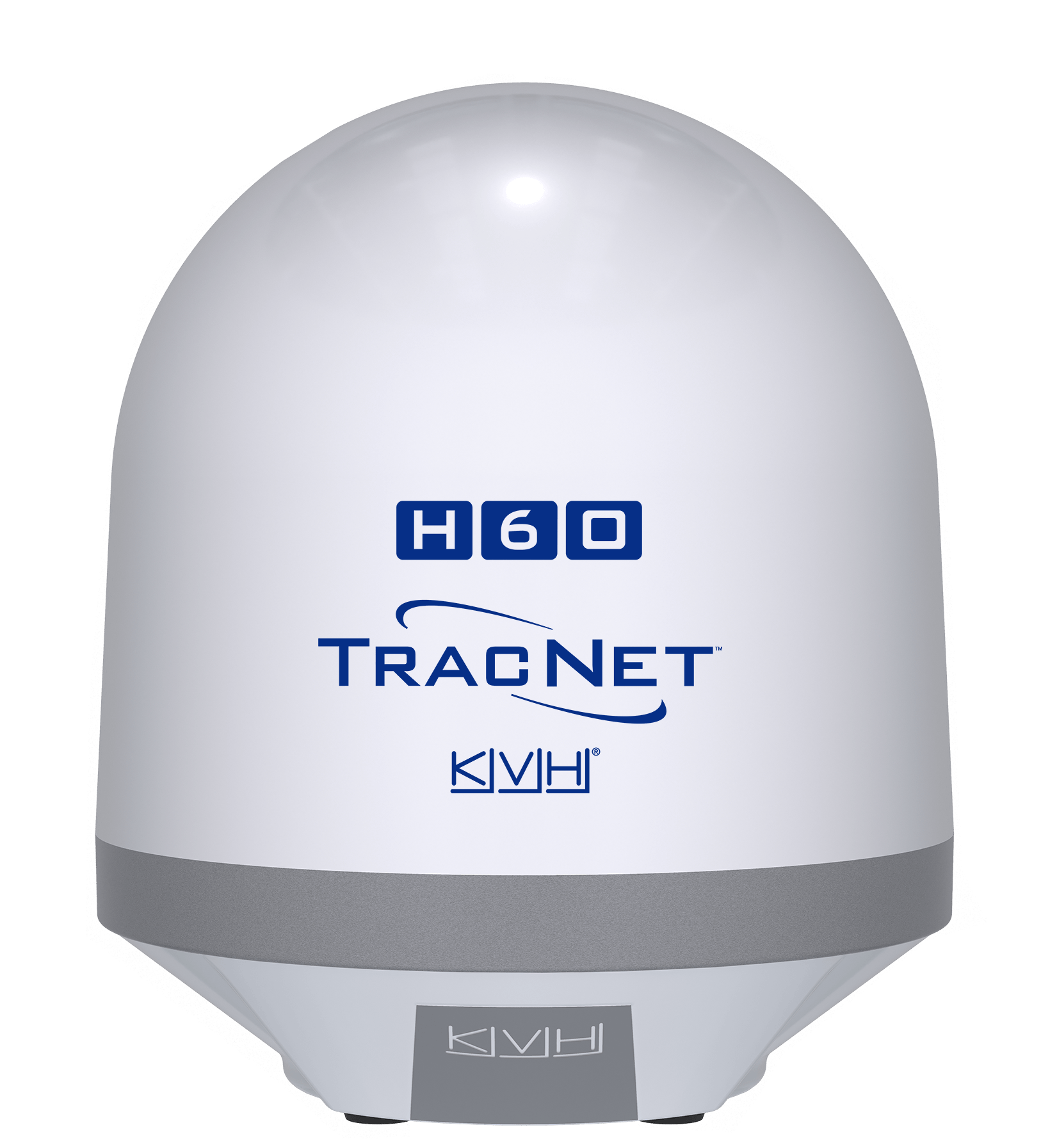

TracNet H60 (Leisure Vessels >60')

Best suited to:

  • Inter-region vessels
  • Leisure Vessels >60'

Key benefits:

  • Satellite, cellular, and Wi-Fi capabilities in one integrated design
  • Automatically switches to the best connectivity option based on cost, data quality, and more

Satelite:

  • Seemless Global roaming
  • Ku-band coverage
  • Highspeed Channel:
  • <10Mbps Download
  • <3Mbps Upload
  • Unlimited data channel
  • Bandwidth options
  • Voip line with local number
  • 2nd Voip line option
  • Rugged, commercial-grade system, diameter 60 cm (23.6 in), weight 24.3 kg (53.6 lbs)

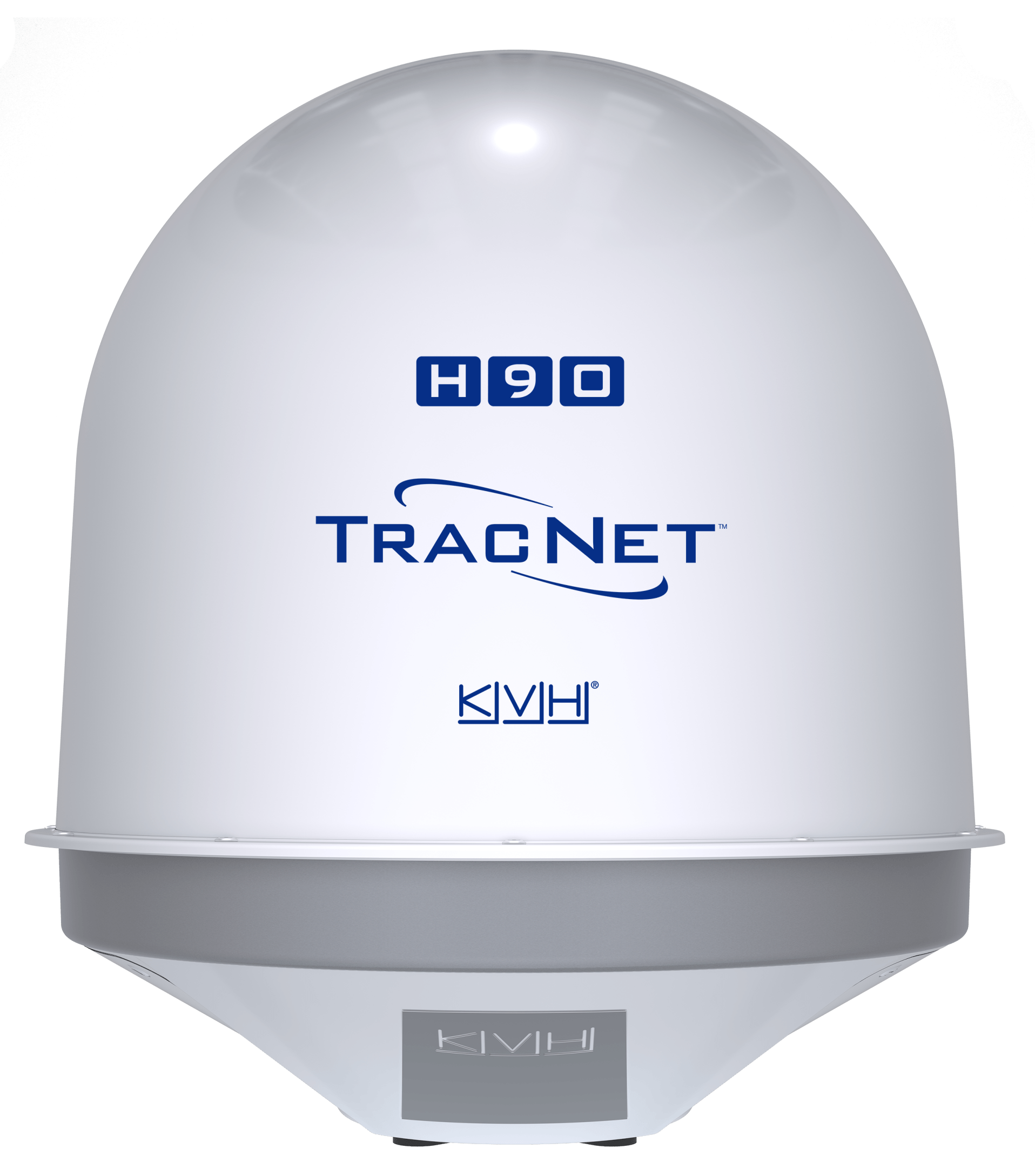

TracNet H90

Best suited to:

  • Global travel vessels
  • Vessels >100'

Key benefits:

  • Rugged, commercial-grade system, diameter 1 m, weight 86 kg
  • Satellite, cellular, and Wi-Fi capabilities in one integrated design
  • Automatically switches to the best connectivity option based on cost, data quality, and more
  • Airtime as much as 69% more affordable than 60 cm terminals
  • For boats 90+ feet (27+ meters)

Satellite:

  • Seemless Global roaming
  • Ku & C-band coverage
  • Highspeed Channel:
  • <20Mbps Download
  • <3Mbps Upload
  • Unlimited data channel
  • Bandwidth options
  • Voip line with local number
  • 2nd Voip line option

KVH ONE (Leisure & Yachting)

Don’t think about how to connect, just feel confident that captains and crew can connect to whatever they need at any time.

KVH ONE Brochure (leisure)

KVH ONE (Agile Plans)

Hybrid Maritime Communications for Fleets Made Simple

KVH ONE Agile (shipping)

KVH ONE (Commercial Maritime)

Set sail with certainty. With Burmarc, captains and crew are always connected, no matter the time or tide.

KVH ONE Brochure (shipping)

Iridium & GMDSS - LEO (Low Earth Orbit) Satcomms

Iridium Certus

Best suited to:

  • Vessels over 50'

Key benefits:

  • Pole-Pole Global Coverage
  • <700kbps Download
  • <170kbps Upload
  • VoIP line

Hardware options:

  • Best for standalone: Intellian C700
  • Best for VSAT failover: Sailor 4300

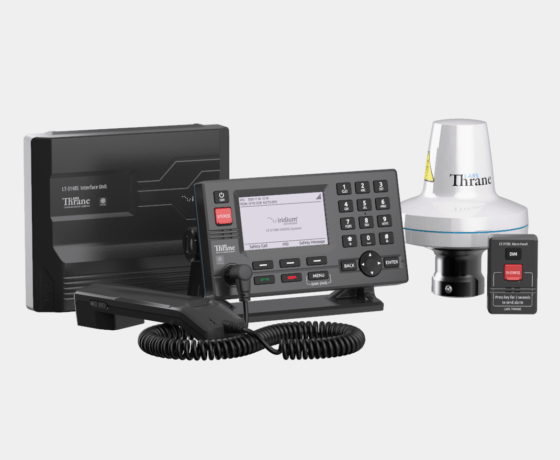

Iridium GMDSS

Best suited to:

  • SOLAS Vessels requiring GMDSS

Key benefits:

  • Pole-Pole Global Coverage
  • SOLAS GMDSS Approved (Sea Areas A1, A2, and A3)
  • Distress Alert & Distress Call
  • Safety Calling & Safety Messaging
  • Maritime Safety Information (MSI)
  • Support for remote Alarm Panels
  • Support for GMDSS Printer
  • Support for Bridge Alert Management (BAM)
  • Ship Security Alert System (SSAS)
  • Voice & SMS (non-GMDSS services)
  • Single antenna cable solution (up to 500 m)
  • High-performance GNSS/GPS receiver
  • Webserver for configuration and maintenance
  • MED Module B+D, RED(CE), FCC, ISED, ROHS2, Iridium

Hardware options:

  • Thrane LT-3100S

Get in Touch

Got questions? Dive into the sea of knowledge with Burmarc - we're here to guide your voyage of discovery!
